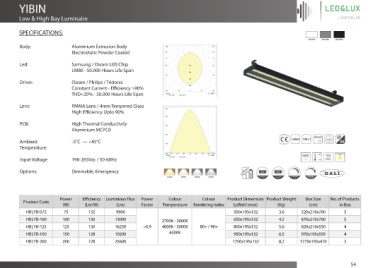

Page 54 - LED&LUX Catalogue- V1.0

YIBIN

Low & High Bay Luminaire

SPECIFICATIONS:

Body: Aluminium Extrusion Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Lens: PMMA Lens / 4mm Tempered Glass
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient -5°C — +45°C 65
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -5°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
HBLYB-075 75 132 9900 500x195x132 3,6 520x210x700 5
HBLYB-100 100 130 13000 2700K - 3000K 650x195x132 4,5 670x210x700 5
HBLYB-125 125 130 16250 >0,9 4000K - 5000K 80+ / 90+ 800x195x132 5,6 820x210x550 4
HBLYB-150 150 128 19200 6500K 950x195x132 6,5 970x195x550 4
HBLYB-200 200 128 25600 1250x195x132 8,2 1270x195x410 3
