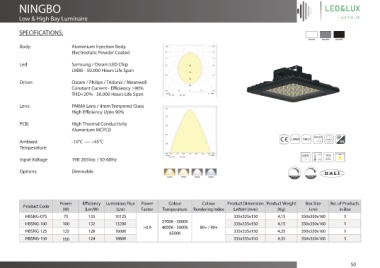

NINGBO
Low & High Bay Luminaire
SPECIFICATIONS:
Body: Aluminium Injection Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic / Meanwell
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Lens: PMMA Lens / 4mm Tempered Glass
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient -10°C — +45°C 65
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac
Options: Dimmable
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
HBSNG-075 75 135 10125 335x335x150 4,15 350x350x160 1
2700K - 3000K
HBSNG-100 100 132 13200 335x335x150 4,15 350x350x160 1
>0,9 4000K - 5000K 80+ / 90+
HBSNG-125 125 128 16000 6500K 335x335x150 4,35 350x350x160 1
HBSNG-150 150 124 18600 335x335x150 4,35 350x350x160 1
