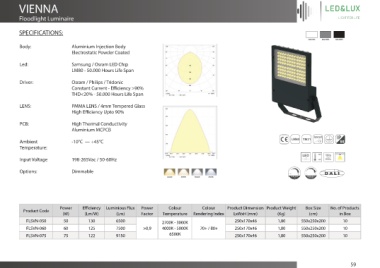

Page 59 - LED&LUX Catalogue- V1.0
P. 59
VIENNA
Floodlight Luminaire
SPECIFICATIONS:
Body: Aluminium Injection Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
LENS: PMMA LENS / 4mm Tempered Glass
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient -10°C — +45°C 66
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac
Options: Dimmable
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
FLSVN-050 50 130 6500 2700K - 3000K 250x170x46 1,80 550x250x200 10
FLSVN-060 60 125 7500 >0,9 4000K - 5000K 70+ / 80+ 250x170x46 1,80 550x250x200 10
FLSVN-075 75 122 9150 6500K 250x170x46 1,80 550x250x200 10
59
