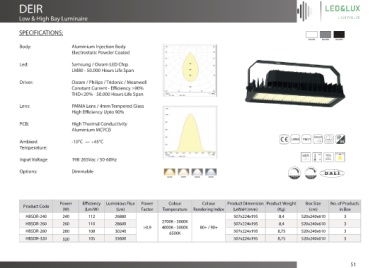

Page 51 - LED&LUX Catalogue- V1.0

DEIR

Low & High Bay Luminaire

SPECIFICATIONS:

Body: Aluminium Injection Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic / Meanwell
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Lens: PMMA Lens / 4mm Tempered Glass
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient -10°C — +45°C 65
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac

Options: Dimmable

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
HBSDR-240 240 112 26880 507x224x195 8,4 520x240x610 3
2700K - 3000K
HBSDR-260 260 110 28600 507x224x195 8,4 520x240x610 3
>0,9 4000K - 5000K 80+ / 90+
HBSDR-280 280 108 30240 6500K 507x224x195 8,75 520x240x610 3
HBSDR-320 320 105 33600 507x224x195 8,75 520x240x610 3
