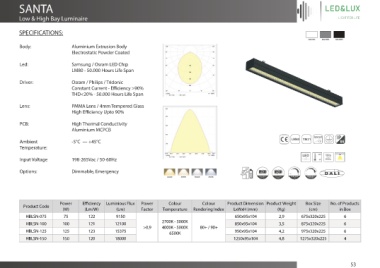

Page 53 - LED&LUX Catalogue- V1.0

SANTA

Low & High Bay Luminaire

SPECIFICATIONS:

Body: Aluminium Extrusion Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Lens: PMMA Lens / 4mm Tempered Glass
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient -5°C — +45°C 65
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -5°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
HBLSN-075 75 122 9150 650x95x104 2,9 675x320x225 6
2700K - 3000K
HBLSN-100 100 121 12100 850x95x104 3,5 875x320x225 6
>0,9 4000K - 5000K 80+ / 90+
HBLSN-125 125 123 15375 6500K 950x95x104 4,2 975x320x225 6
HBLSN-150 150 120 18000 1250x95x104 4,8 1275x320x225 4

53
