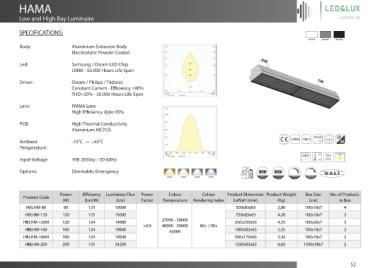

Page 52 - LED&LUX Catalogue- V1.0
P. 52
HAMA
Low and High Bay Luminaire
SPECIFICATIONS:
Body: Aluminium Extrusion Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Lens: PMMA Lens
High Eciency Upto 95%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient -10°C — +45°C 65
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
HBLHM-80 80 125 10000 500x83x63 2,80 100x18x7 4
HBLHM-120 120 125 15000 750x83x63 4,20 100x18x7 2
2700K - 3000K
HBLHM-120M 120 124 14880 250x250x63 4,35 100x26x7 3
>0,9 4000K - 5000K 80+ / 90+
HBLHM-160 160 124 19840 6500K 1000x83x63 5,35 100x18x7 2
HBLHM-160M 160 124 19840 500x170x63 5,42 100x18x7 2
HBLHM-200 200 121 24200 1250x83x63 6,65 1500x18x7 2
52
