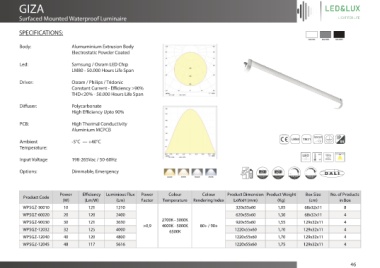

Page 46 - LED&LUX Catalogue- V1.0

GIZA

Surfaced Mounted Waterproof Luminaire

SPECIFICATIONS:

Body: Alumuminium Extrusion Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: Polycarbonate
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient -5°C — +40°C 65
Temperature:
40°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -5°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
WPSGZ-30010 10 121 1210 320x55x60 1,05 68x32x11 8
WPSGZ-60020 20 120 2400 620x55x60 1,30 68x32x11 4
2700K - 3000K
WPSGZ-90030 30 121 3630 920x55x60 1,55 129x32x11 4
>0,9 4000K - 5000K 80+ / 90+
WPSGZ-12032 32 125 4000 6500K 1220x55x60 1,70 129x32x11 4
WPSGZ-12040 40 120 4800 1220x55x60 1,70 129x32x11 4
WPSGZ-12045 48 117 5616 1220x55x60 1,75 129x32x11 4

46
