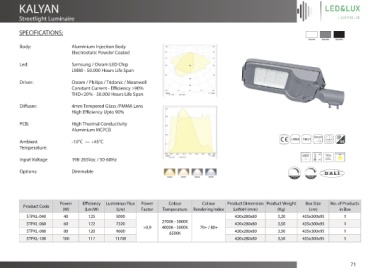

Page 71 - LED&LUX Catalogue- V1.0
P. 71
KALYAN
Streetlight Luminaire
SPECIFICATIONS:
Body: Aluminium Injection Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic / Meanwell
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 4mm Tempered Glass /PMMA Lens
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient -10°C — +45°C 66
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac
Options: Dimmable
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
STPKL-040 40 125 5000 420x280x80 3,20 435x300x95 1
2700K - 3000K
STPKL-060 60 122 7320 420x280x80 3,50 435x300x95 1
>0,9 4000K - 5000K 70+ / 80+
STPKL-080 80 120 9600 6500K 420x280x80 3,50 435x300x95 1
STPKL-100 100 117 11700 420x280x80 3,50 435x300x95 1
71
