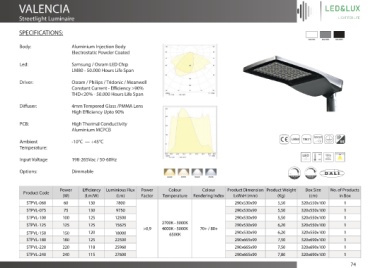

Page 74 - LED&LUX Catalogue- V1.0

VALENCIA

Streetlight Luminaire

SPECIFICATIONS:

Body: Aluminium Injection Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic / Meanwell
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: 4mm Tempered Glass /PMMA Lens
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient -10°C — +45°C 66
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac

Options: Dimmable

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
STPVL-060 60 130 7800 290x530x90 5,50 320x550x100 1
STPVL-075 75 130 9750 290x530x90 5,50 320x550x100 1
STPVL-100 100 125 12500 290x530x90 5,50 320x550x100 1
STPVL-125 125 125 15625 2700K - 3000K 290x530x90 6,20 320x550x100 1
>0,9 4000K - 5000K 70+ / 80+
STPVL-150 150 120 18000 6500K 290x530x90 6,20 320x550x100 1
STPVL-180 180 125 22500 290x665x90 7,50 320x690x100 1
STPVL-220 220 118 25960 290x665x90 7,50 320x690x100 1
STPVL-240 240 115 27600 290x665x90 7,80 320x690x100 1
74
