Page 67 - LED&LUX Catalogue- V1.0
P. 67

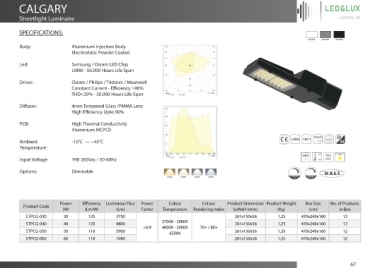

CALGARY
Streetlight Luminaire
SPECIFICATIONS:
Body: Aluminium Injection Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic / Meanwell
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 4mm Tempered Glass /PMMA Lens
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient -10°C — +45°C 66
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac
Options: Dimmable
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
STPCG-030 30 125 3750 261x150x56 1,25 470x240x160 12
2700K - 3000K
STPCG-040 40 120 4800 261x150x56 1,25 470x240x160 12
>0,9 4000K - 5000K 70+ / 80+
STPCG-050 50 118 5900 6500K 261x150x56 1,35 470x240x160 12
STPCG-060 60 118 7080 261x150x56 1,35 470x240x160 12
67
