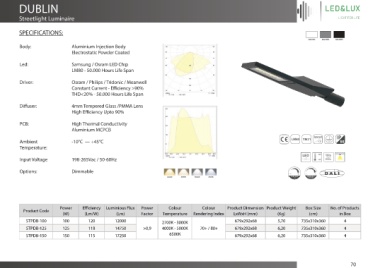

Page 70 - LED&LUX Catalogue- V1.0
P. 70
DUBLIN
Streetlight Luminaire
SPECIFICATIONS:
Body: Aluminium Injection Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic / Meanwell
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 4mm Tempered Glass /PMMA Lens
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient -10°C — +45°C 66
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac
Options: Dimmable
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
STPDB-100 100 120 12000 2700K - 3000K 679x292x68 5,70 735x310x360 4
STPDB-125 125 118 14750 >0,9 4000K - 5000K 70+ / 80+ 679x292x68 6,20 735x310x360 4
STPDB-150 150 115 17250 6500K 679x292x68 6,20 735x310x360 4
70
