Page 62 - LED&LUX Catalogue- V1.0

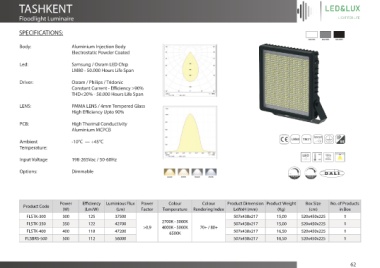

TASHKENT

Floodlight Luminaire

SPECIFICATIONS:

Body: Aluminium Injection Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

LENS: PMMA LENS / 4mm Tempered Glass
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient -10°C — +45°C 66
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac

Options: Dimmable

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
FLSTK-300 300 125 37500 507x438x217 15,00 520x450x225 1
2700K - 3000K
FLSTK-350 350 122 42700 507x438x217 15,00 520x450x225 1
>0,9 4000K - 5000K 70+ / 80+
FLSTK-400 400 118 47200 6500K 507x438x217 16,50 520x450x225 1
FLSBRS-500 500 112 56000 507x438x217 16,50 520x450x225 1

62
