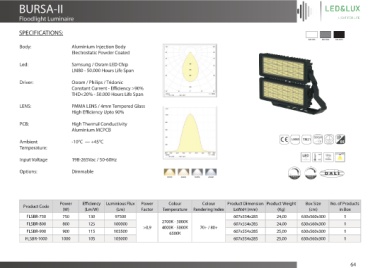

Page 64 - LED&LUX Catalogue- V1.0
P. 64
BURSA-II
Floodlight Luminaire
SPECIFICATIONS:
Body: Aluminium Injection Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
LENS: PMMA LENS / 4mm Tempered Glass
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient -10°C — +45°C 66
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac
Options: Dimmable
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
FLSBR-750 750 130 97500 607x554x285 24,00 630x560x300 1
2700K - 3000K
FLSBR-800 800 125 100000 607x554x285 24,00 630x560x300 1
>0,9 4000K - 5000K 70+ / 80+
FLSBR-900 900 115 103500 6500K 607x554x285 25,00 630x560x300 1
FLSBR-1000 1000 105 105000 607x554x285 25,00 630x560x300 1
64
