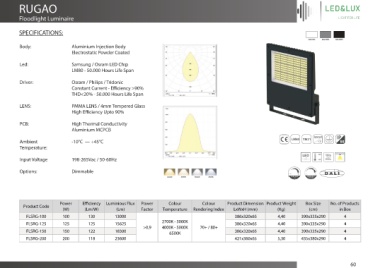

Page 60 - LED&LUX Catalogue- V1.0
P. 60
RUGAO
Floodlight Luminaire
SPECIFICATIONS:
Body: Aluminium Injection Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
LENS: PMMA LENS / 4mm Tempered Glass
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient -10°C — +45°C 66
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac
Options: Dimmable
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
FLSRG-100 100 130 13000 386x320x65 4,40 390x335x290 4
2700K - 3000K
FLSRG-125 125 125 15625 386x320x65 4,40 390x335x290 4
>0,9 4000K - 5000K 70+ / 80+
FLSRG-150 150 122 18300 6500K 386x320x65 4,40 390x335x290 4
FLSRG-200 200 118 23600 421x360x65 5,30 435x380x290 4
60
