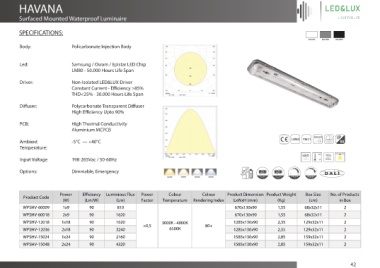

Page 42 - LED&LUX Catalogue- V1.0
P. 42
HAVANA
Surfaced Mounted Waterproof Luminaire
SPECIFICATIONS:
Body: Policarbonate Injection Body
Led: Samsung / Osram / Epistar LED Chip
LM80 - 50.000 Hours Life Span
Driver: Non-Isolated LED&LUX Driver
Constant Current - Eciency >85%
THD<25% - 30.000 Hours Life Span
Diuser: Polycarbonate Transparent Diuser
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient -5°C — +40°C 65
Temperature:
40°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -5°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
WPSHV-60009 1x9 90 810 670x130x90 1,55 68x32x11 2
WPSHV-60018 2x9 90 1620 670x130x90 1,55 68x32x11 2
WPSHV-12018 1x18 90 1620 3000K - 4000K 1285x130x90 2,35 129x32x11 2
>0,5 80+
WPSHV-12036 2x18 90 3240 6500K 1285x130x90 2,35 129x32x11 2
WPSHV-15024 1x24 90 2160 1585x130x90 2,85 159x32x11 2
WPSHV-15048 2x24 90 4320 1585x130x90 2,85 159x32x11 2
42
