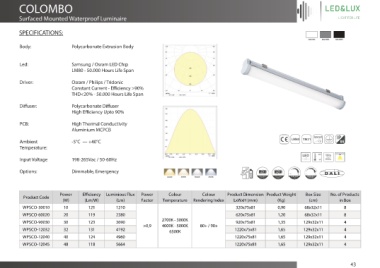

COLOMBO
Surfaced Mounted Waterproof Luminaire
SPECIFICATIONS:
Body: Polycarbonate Extrusion Body
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: Polycarbonate Diuser
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient -5°C — +40°C 65
Temperature:
40°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -5°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
WPSCO-30010 10 121 1210 320x75x81 0,90 68x32x11 8
WPSCO-60020 20 119 2380 620x75x81 1,20 68x32x11 8
2700K - 3000K
WPSCO-90030 30 123 3690 920x75x81 1,35 129x32x11 4
>0,9 4000K - 5000K 80+ / 90+
WPSCO-12032 32 131 4192 6500K 1220x75x81 1,65 129x32x11 4
WPSCO-12040 40 124 4960 1220x75x81 1,65 129x32x11 4
WPSCO-12045 48 118 5664 1220x75x81 1,65 129x32x11 4
