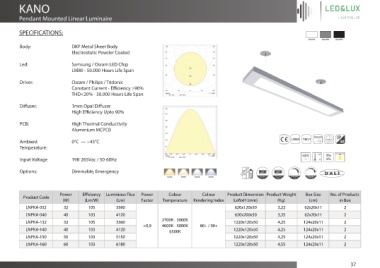

Page 37 - LED&LUX Catalogue- V1.0
P. 37
KANO
Pendant Mounted Linear Luminaire
SPECIFICATIONS:
Body: DKP Metal Sheet Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 1mm Opal Diuser
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
LNPKA-032 32 105 3360 620x120x50 3,22 62x20x11 2
LNPKA-040 40 103 4120 620x200x50 3,35 62x20x11 2
2700K - 3000K
LNPKA-132 32 105 3360 1220x120x50 4,25 124x20x11 2
>0,9 4000K - 5000K 80+ / 90+
LNPKA-140 40 103 4120 6500K 1220x120x50 4,25 124x20x11 2
LNPKA-150 50 103 5150 1220x120x50 4,25 124x20x11 2
LNPKA-160 60 103 6180 1220x120x50 4,55 124x20x11 2
37
