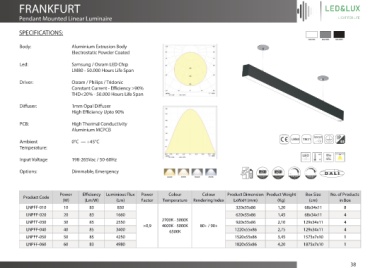

Page 38 - LED&LUX Catalogue- V1.0

FRANKFURT

Pendant Mounted Linear Luminaire

SPECIFICATIONS:

Body: Aluminium Extrusion Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: 1mm Opal Diuser
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
LNPFF-010 10 83 830 320x55x86 1,20 68x34x11 8
LNPFF-020 20 83 1660 620x55x86 1,45 68x34x11 4
2700K - 3000K
LNPFF-030 30 85 2550 920x55x86 2,10 129x34x11 4
>0,9 4000K - 5000K 80+ / 90+
LNPFF-040 40 85 3400 6500K 1220x55x86 2,75 129x34x11 4
LNPFF-050 50 85 4250 1520x55x86 3,45 1575x7x10 1
LNPFF-060 60 83 4980 1820x55x86 4,20 1875x7x10 1

38
