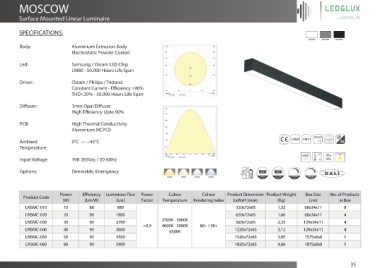

MOSCOW
Surface Mounted Linear Luminaire
SPECIFICATIONS:
Body: Aluminium Extrusion Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 1mm Opal Diuser
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
LNSMC-010 10 88 880 320x72x65 1,32 68x34x11 8
LNSMC-020 20 90 1800 620x72x65 1,60 68x34x11 4
2700K - 3000K
LNSMC-030 30 90 2700 920x72x65 2,35 129x34x11 4
>0,9 4000K - 5000K 80+ / 90+
LNSMC-040 40 90 3600 6500K 1220x72x65 3,12 129x34x11 4
LNSMC-050 50 90 4500 1520x72x65 3,85 1575x8x8 1
LNSMC-060 60 90 5400 1820x72x65 4,66 1875x8x8 1
