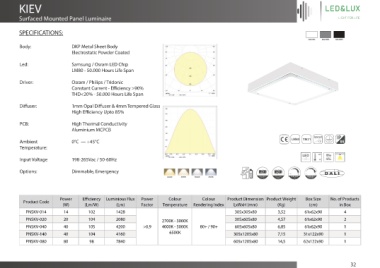

KIEV

         Surfaced Mounted Panel Luminaire


          SPECIFICATIONS:


          Body:                  DKP Metal Sheet Body
                                 Electrostatic Powder Coated

          Led:                   Samsung / Osram LED Chip
                                 LM80 - 50.000 Hours Life Span

          Driver:                Osram / Philips / Tridonic
                                 Constant Current - Eciency >90%
                                 THD<20% - 50.000 Hours Life Span


          Diuser:               1mm Opal Diuser & 4mm Tempered Glass
                                 High Eciency Upto 85%


          PCB:                   High Thermal Conductivity
                                 Aluminium MCPCB

          Ambient                0°C  — +45°C                                                                                                           65
          Temperature:
                                                                                                                                              45°C  198Vac
          Input Voltage          198-265Vac / 50-60Hz                                                                                         0°C  264Vac


          Options:               Dimmable, Emergency





                            Power     Eciency  Luminious Flux  Power       Colour         Colour     Product Dimension Product Weight  Box Size    No. of Products
           Product Code
                             (W)       (Lm/W)        (Lm)       Factor   Temperature   Rendering Index   LxWxH (mm)         (Kg)          (cm)         in Box
            PNSKV-014        14         102         1428                                                 305x305x80         3,52        61x62x90         4
            PNSKV-020        20         104         2080                 2700K - 3000K                   305x605x80         4,57        61x62x90         2
            PNSKV-040        40         105         4200        >0,9     4000K - 5000K    80+ / 90+      605x605x80         6,85        61x62x90         1
            PNSKV-140        40         104         4160                    6500K                        305x1205x80        7,15       31x122x90         1
            PNSKV-080        80          98         7840                                                 605x1205x80        14,5       62x122x90         1
