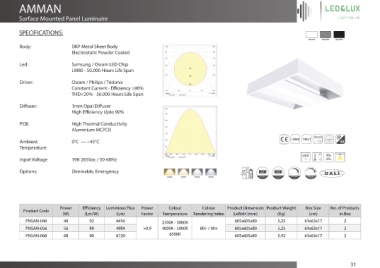

Page 31 - LED&LUX Catalogue- V1.0

AMMAN

Surface Mounted Panel Luminaire

SPECIFICATIONS:

Body: DKP Metal Sheet Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: 1mm Opal Diuser
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
PNSAN-048 48 92 4416 2700K - 3000K 605x605x80 5,25 61x63x17 2

PNSAN-056 56 89 4984 >0,9 4000K - 5000K 80+ / 90+ 605x605x80 5,25 61x63x17 2
PNSAN-068 68 90 6120 6500K 605x605x80 5,42 61x63x17 2

31
