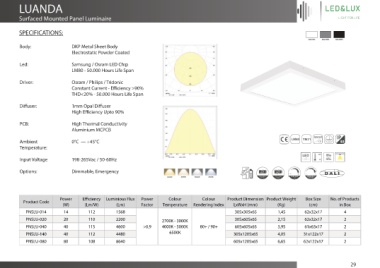

LUANDA
Surfaced Mounted Panel Luminaire
SPECIFICATIONS:
Body: DKP Metal Sheet Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 1mm Opal Diuser
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
PNSLU-014 14 112 1568 305x305x65 1,45 62x32x17 4
PNSLU-020 20 110 2200 2700K - 3000K 305x605x65 2,15 62x32x17 2
PNSLU-040 40 115 4600 >0,9 4000K - 5000K 80+ / 90+ 605x605x65 3,95 61x63x17 2
PNSLU-140 40 112 4480 6500K 305x1205x65 4,05 31x122x17 2
PNSLU-080 80 108 8640 605x1205x65 6,65 62x122x17 2
