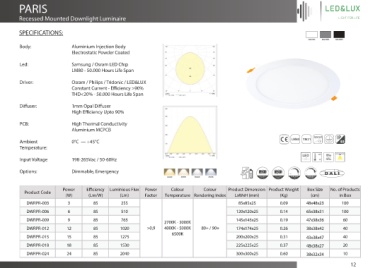

Page 12 - LED&LUX Catalogue- V1.0

PARIS

Recessed Mounted Downlight Luminaire

SPECIFICATIONS:

Body: Aluminium Injection Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic / LED&LUX
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: 1mm Opal Diuser
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
DWRPR-003 3 85 255 85x85x25 0.09 48x48x23 100
DWRPR-006 6 85 510 120x120x25 0.14 65x38x31 100
DWRPR-009 9 85 765 2700K - 3000K 145x145x25 0.19 47x38x36 60

DWRPR-012 12 85 1020 >0,9 4000K - 5000K 80+ / 90+ 174x174x25 0.26 38x38x42 40
6500K
DWRPR-015 15 85 1275 200x200x25 0.31 43x38x47 40
DWRPR-018 18 85 1530 225x225x25 0.37 48x38x27 20

DWRPR-024 24 85 2040 300x300x25 0.60 38x32x34 10
