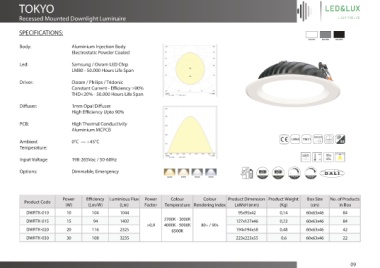

Page 9 - LED&LUX Catalogue- V1.0

TOKYO

Recessed Mounted Downlight Luminaire

SPECIFICATIONS:

Body: Aluminium Injection Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: 1mm Opal Diuser
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
DWRTK-010 10 104 1044 95x95x42 0,14 60x63x46 84

DWRTK-015 15 94 1402 2700K - 3000K 127x127x46 0,23 60x63x46 84
>0,9 4000K - 5000K 80+ / 90+
DWRTK-020 20 116 2325 6500K 194x194x58 0,48 60x63x46 42
DWRTK-030 30 108 3235 223x223x55 0,6 60x63x46 22
