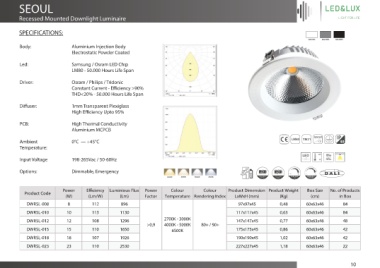

Page 10 - LED&LUX Catalogue- V1.0
P. 10
SEOUL
Recessed Mounted Downlight Luminaire
SPECIFICATIONS:
Body: Aluminium Injection Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 1mm Transparent Plexiglass
High Eciency Upto 95%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
DWRSL-008 8 112 896 97x97x45 0,48 60x63x46 84
DWRSL-010 10 113 1130 117x117x45 0,63 60x63x46 84
DWRSL-012 12 108 1296 2700K - 3000K 147x147x45 0,77 60x63x46 48
>0,9 4000K - 5000K 80+ / 90+
DWRSL-015 15 110 1650 6500K 175x175x45 0,86 60x63x46 42
DWRSL-018 18 107 1926 190x190x45 1,02 60x63x46 42
DWRSL-023 23 110 2530 227x227x45 1,18 60x63x46 22
10
