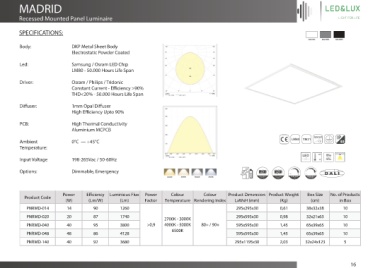

MADRID
Recessed Mounted Panel Luminaire
SPECIFICATIONS:
Body: DKP Metal Sheet Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 1mm Opal Diuser
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
PNRMD-014 14 90 1260 295x295x30 0,61 38x32x38 10
PNRMD-020 20 87 1740 295x595x30 0,98 32x21x63 10
2700K - 3000K
PNRMD-040 40 95 3800 >0,9 4000K - 5000K 80+ / 90+ 595x595x30 1,45 65x39x65 10
6500K
PNRMD-048 48 86 4128 595x595x30 1,45 65x39x65 10
PNRMD-140 40 92 3680 295x1195x30 2,03 32x24x123 5
