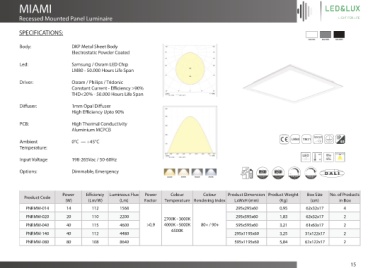

Page 15 - LED&LUX Catalogue- V1.0

MIAMI

Recessed Mounted Panel Luminaire

SPECIFICATIONS:

Body: DKP Metal Sheet Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: 1mm Opal Diuser
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
PNRMM-014 14 112 1568 295x295x60 0,95 62x32x17 4
PNRMM-020 20 110 2200 295x595x60 1,83 62x32x17 2
2700K - 3000K
PNRMM-040 40 115 4600 >0,9 4000K - 5000K 80+ / 90+ 595x595x60 3,21 61x63x17 2
6500K
PNRMM-140 40 112 4480 295x1195x60 3,25 31x122x17 2
PNRMM-080 80 108 8640 595x1195x60 5,84 62x122x17 2
