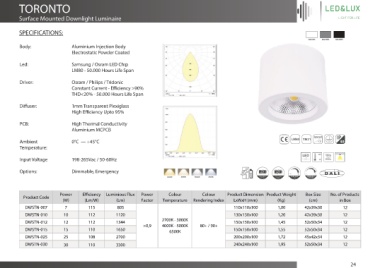

Page 24 - LED&LUX Catalogue- V1.0
P. 24
TORONTO
Surface Mounted Downlight Luminaire
SPECIFICATIONS:
Body: Aluminium Injection Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 1mm Transparent Plexiglass
High Eciency Upto 95%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
DWSTN-007 7 115 805 110x110x100 1,00 42x39x30 12
DWSTN-010 10 112 1120 130x130x100 1,20 42x39x30 12
2700K - 3000K
DWSTN-012 12 112 1344 150x150x100 1,45 52x50x34 12
>0,9 4000K - 5000K 80+ / 90+
DWSTN-015 15 110 1650 6500K 150x150x100 1,55 52x50x34 12
DWSTN-025 25 108 2700 200x200x100 1,72 45x42x34 12
DWSTN-030 30 110 3300 240x240x100 1,95 52x50x34 12
24
