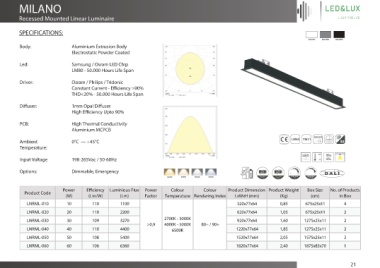

Page 21 - LED&LUX Catalogue- V1.0

MILANO

Recessed Mounted Linear Luminaire

SPECIFICATIONS:

Body: Aluminium Extrusion Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: 1mm Opal Diuser
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
LNRML-010 10 110 1100 320x77x64 0,85 675x25x11 4
LNRML-020 20 110 2200 620x77x64 1,05 675x25x11 2
LNRML-030 30 109 3270 2700K - 3000K 920x77x64 1,60 1275x25x11 2
>0,9 4000K - 5000K 80+ / 90+
LNRML-040 40 110 4400 6500K 1220x77x64 1,85 1275x25x11 2
LNRML-050 50 108 5400 1520x77x64 2,05 1575x25x11 2
LNRML-060 60 106 6360 1820x77x64 2,40 1875x85x70 1
