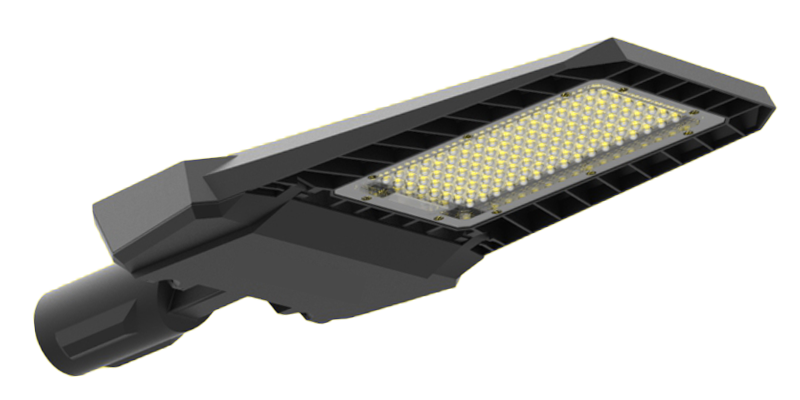

CALGARY
CALGARY
| Light Source: | High Power SMD LED >60000 Hours Life Span 3-Step MacAdams - LM80 |
| LED Chip Brand: | Samsung / Osram |
Color Rendering (CRI): |
>70 |
Correlated Color Temperature (CCT): |
3000K (Warm White - WW) 4000K (Natural White - NW) 6500K (Cool White - CW) |
LED Module Board (PCB): |
Metal Core PCB - White Finishing 1.5W/mK Heat Transfer Coefficient |
Power Source: |
Constant Current >60000 Hours Life Span ENEC Certified |
| Driver Brand: | Meanwell / Inventronics / Philips / Osram |
| Power Factor (PF): | >0,9 |
Driver Safety: |
Overload Protection (OLP) Overvoltage Protection (OVP) Short Circuit Protection (SCP) Over Temperature Protection (OTP) Surge Protection (SP) |
| Housing: | Aluminium High Pressure Die Cast Injection |
| Optic: | 4mm Tempered Glass PMMA Lens |
| Finishing: | Electrostatic Powder Coating Anthracite Grey Colour |
| Luminaire Type: | Road, Street & Landscape Lighting |
| Input Voltage: | 220-230Vac / 50-60Hz |
Luminaire Efficiency: |
>120 Lm/W |
| IP Rating: | IP66 |
| IK Rating: | IK08 |
| Light Distibution Angle: | Asymmetric |
| Electrical Safety: | Class I |
| Ambient Temperature (Ta): | -10°C — +50°C |
| Installation: | Pole (Adjustable Console) |
| Warranty: | 5 Years |
Opsiyonlar: |
CRI: >80 Dim: DALI / Astro Dim Output Power: 30-60Wmax. Efficiency (Lm/W): >125 / >130 / >140 CCT: 2700K / 5000K IP Seviye: IP65 / IP67 Ta: -20°C — +60°C Finishing: RALXXXX Warranty: 7 Year |
| Kullanım Alanlar: | Highways, Urban Roads, Streets Parks, Industrial Zones, Car Parking Lots Ports and Shipyards, Construction Sites |
|
Model Name |
Product Code | Power (W) |
Efficiency (Lm/W) |
Luminious Flux (Lm) |
Colour Temperature (K) |
Product Dimension (mm) | Datasheet | LDT File | ||
|---|---|---|---|---|---|---|---|---|---|---|
| L | W / Ø | H | ||||||||
| Calgary | L&LSTP-CG03030-02615M122-GXYO66 | 30 | 122 | 3660 | 3000 | 261 | 150 | 56 | indir | indir |
| Calgary | L&LSTP-CG03040-02615M127-GXYO66 | 30 | 127 | 3810 | 4000 | 261 | 150 | 56 | indir | indir |
| Calgary | L&LSTP-CG03060-02615M125-GXYO66 | 30 | 125 | 3750 | 6500 | 261 | 150 | 56 | indir | indir |
| Calgary | L&LSTP-CG04030-02615M118-GXYO66 | 40 | 118 | 4720 | 3000 | 261 | 150 | 56 | indir | indir |
| Calgary | L&LSTP-CG04040-02615M124-GXYO66 | 40 | 124 | 4960 | 4000 | 261 | 150 | 56 | indir | indir |
| Calgary | L&LSTP-CG04060-02615M123-GXYO66 | 40 | 123 | 4920 | 6500 | 261 | 150 | 56 | indir | indir |
| Calgary | L&LSTP-CG05030-02615M115-GXYO66 | 50 | 115 | 5750 | 3000 | 261 | 150 | 56 | indir | indir |
| Calgary | L&LSTP-CG05040-02615M119-GXYO66 | 50 | 119 | 5950 | 4000 | 261 | 150 | 56 | indir | indir |
| Calgary | L&LSTP-CG05060-02615M119-GXYO66 | 50 | 119 | 5950 | 6500 | 261 | 150 | 56 | indir | indir |
